Overview

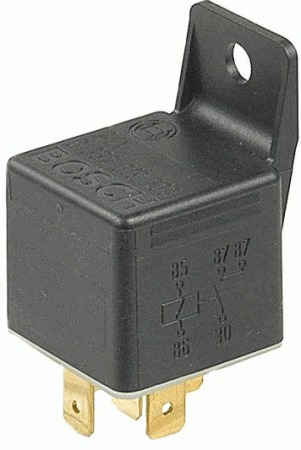

Genuine Bosch 5-pin continuous duty, dual contact mini relay.
| Manufacturer Specifications | |
|---|---|
| Part number: | 0332019150 |
| Designation: | Mini-relay |
| Supplemental information: | With holder |
| Color: | black/grey |
| Type of housing: | Plastic housing |
| Switch function: | without light switching function |
| Number of poles: | 5 |
| Degree of protection of the housing: | IP5K4 |
| Degree of protection of the connections: | IP20 |
| Relay function: | NO contact relay |
| Rated current: | 30,000 A |
| Operating voltage up to: | 8,00 V |
| Operating voltage from: | 31,00 V |
| Nominal voltage: | 12,000 V |
| Total resistance: | 16,00 Ohm |
| Temperature range up to: | 100,00 °C |
| Temperature range from: | -40,00 °C |
Customer Reviews
No reviews to display
Additional Information
| SKU | 106.79019 |
|---|---|
| Part Type | Relay |
| Sale Unit | Each |
