Slant 6 HPI Series 3 Electronic Ignition Conversion : Type "S" (Customisable)

More Views


Quick Overview

Introducing the newest edition to our highly acclaimed HPI electronic ignition conversion kits. This type "S" conversion is suitable for any Slant 6 engine with an RPM range of idle... View full item description

Click the title of a product to add or remove it, click the icon to view item details.

* Required Fields

Reward Points You will earn 500 Reward Points for writing a review this product.


Introducing the newest edition to our highly acclaimed HPI electronic ignition conversion kits.

This type "S" conversion is suitable for any Slant 6 engine with an RPM range of idle to 4800.
Take a look at our type "X" conversion which features a genuine Bosch module, and a brass gear for added reliability in higher demanding engines..

Key features
OE-style clip HEI pickup Simple wiring Transformer coil

Could you tell me a bit about your ignition system?
Gladly. Our new HPI ignition system is the perfect replacement for your Hemi 6 engine.
Whether you're doing a stock rebuild, building a race engine or anything in between, our conversion kit will do the job with ease.
It's suitable for use with ULP, PUL, high-octane race fuel and LPG.
Our system runs on a full 12 volts, so unlike the factory one you won't be running a ballast resistor.
This allows us to eliminate the need of maintaining your ballast resistor, and also means we're able to produce a much higher power spark.
You'll be able to fit our kit without any modifications to your vehicle.

Why should I upgrade my ignition system?
While the factory points or electronic ignition systems were good in their day, that is no longer the case.
What is especially true for the factory points system, is also true for the factory electronic; and that is that they both lack the power to deal with the octane ratings of today's fuels.
Using today's fuels means that you require a hotter spark to burn the fuel cleanly and completely, and to achieve that you need a higher voltage spark.
Today, Hemi Performance is able to offer you the highest voltage direct-fit replacement ignition system for your Hemi 6.
Our ignition system works in excess of 88,000 volts, a far cry from the antiquate 20,000 or 40,000 volts of the factory points or Mopar electronic (give or take a few.)
This extra voltage means that you'll immediately notice a smoother idle and an increase torque and horsepower to your Hemi, you'll also reap the benefit of increased economy; which is more important than ever with the cost of today's fuels.

What's involved in upgrading my ignition system?
Well, the short answer; not much!
Our conversion kit is suitable for vehicles currently fitted with points, electronic and/or ELB.
Fitting instructions are provided but a quick run-down is as follows.
Remove your old distributor, ignition box (Chrysler black/Mopar orange), ballast resistor, and coil. Disconnect the ELB (replace with standard air cleaner if desired.)
Fit the new distributor, fit the new coil, connect the distributor to the coil and any additional wires that were on your old coil.
That's all there is to it.

What's improved since your last Slant 6 HPI conversion?
Heaps. Our last conversion kit used a rebuilt factory one, we've now replaced that with a BRAND NEW distributor. Here are a few things our new kit features.

  • OE-style cap retainer clamps.
  • High quality body casting to ensure a precision finish. No one likes bad quality casting.
  • Precision advance curve. Finely tuned weights & springs allow for smoother advance curve & more power evenly across entire rev range.
  • Robust weight system. One-piece weight & improved weight retention allows higher RPM with great reliability.
  • Strong vacuum advance. Features a strong diaphragm to ensure smooth advance curve and better response. Stronger spring to ensure vac advance properly returns to neutral advance.
  • Precision bearings. Features high quality roller bearings to allow shaft to spin more freely with close to zero tolerance!
  • Rubber inspection plug. Easy to remove/install rubber grommet.
  • Serious pickup. Precision alignment for strong & more reliable signal to module.
  • Easy connectors. Distributor to coil connectors are different for negative and positive to ensure you can't accidentally mix them up.
  • Quality wiring. We use flexible, multi-core wiring which offers low resistance.

What's the difference between the "S" and "X" type?
There isn't a whole lot of changes, but the two changes do make a lot of difference to the overall performance of the product.
Our type "S" conversion uses a generic aftermarket module to control the spark.
While this module is good, we've found it isn't overly accurate when surpassing 4800 RPM.
The type "X" conversion upgrades you to a genuine Bosch module, and to a bronze distributor gear.
With a Bosch module we're able to offer much higher RPM ranges without reliability issues.
This, coupled with a bronze gear to absorb engine harmonics means your distributor will offer reliable service even from high demanding engines.

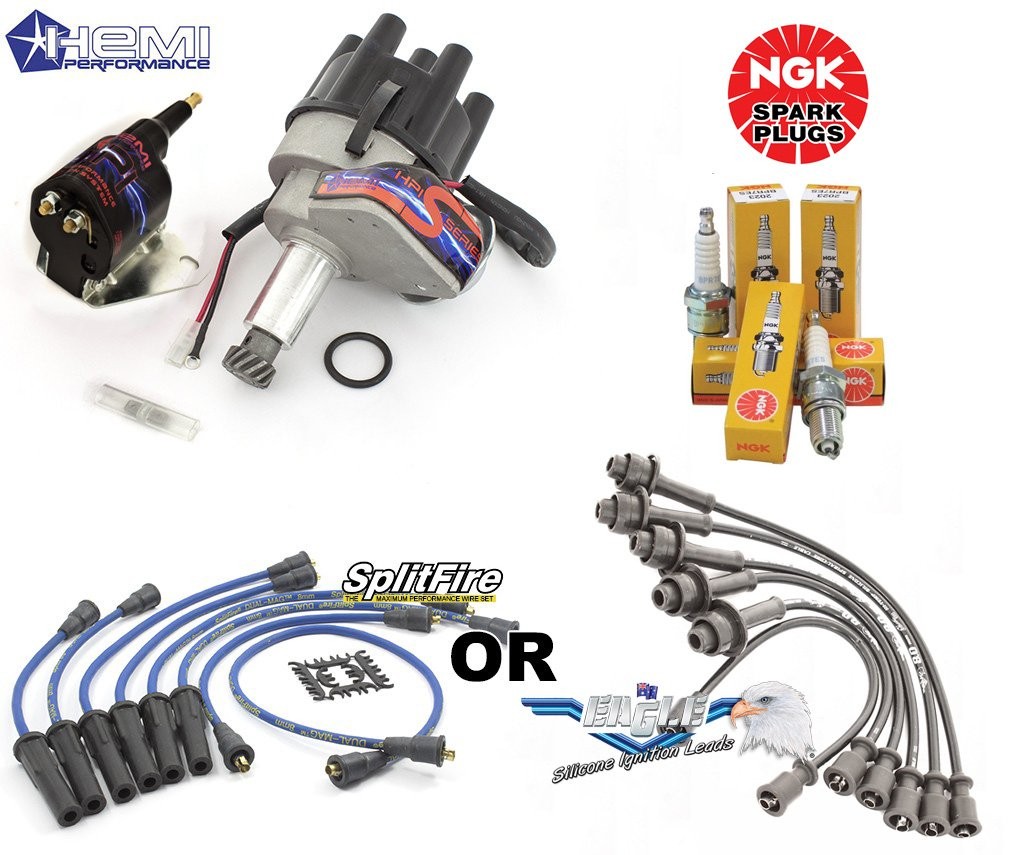

What do I get when I purchase your kit?
When you purchase our conversion, you'll receive everything you need.

  • A brand new distributor (complete with cap, rotor, and built-in module)
  • High energy transformer coil
  • Male-female high tension coil lead
  • Joiner (to bypass ballast resistor)
  • Fitting instructions
  • SplitFire PEAK Performance Spark Plugs
  • Your choice of high tension leads

Additional Information

SKU 115.52804
Sale Unit kit
